Civil Technology Grade 12 IEB 2016 Question Paper

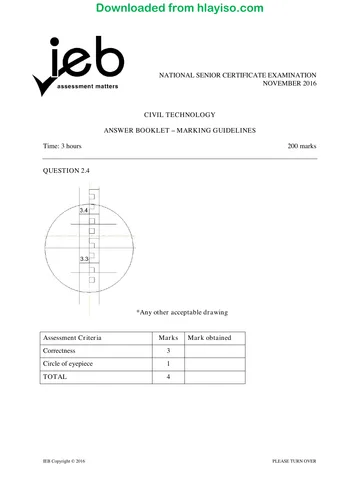

Downloaded from hlayiso.com NATIONAL SENIOR CERTIFICATE EXAMINATION NOVEMBER 2016 CIVIL TECHNOLOGY EXAMINATION NUMBER ANSWER BOOKLET QUESTION 2.4 Assessment Criteria Mark Mark obtained Correctness 3 Circle of eyepiece 1 TOTAL 4 IEB Copyright © 2016 PLEASE TURN OVER

Downloaded from hlayiso.com NATIONAL SENIOR CERTIFICATE: CIVIL TECHNOLOGY – ANSWER BOOKLET Page ii of vii QUESTION 3.2 CIVIL SERVICES Figure 3.2 Assessment Criteria Marks Mark obtained 3.2.1 Symbols for sanitary fittings 4 3.2.2 Correctness of sewerage system 3 Correct line type 1 Any two abbreviations 2 Colour code for ONE pipe 1 Diameter of drain pipe indicated 1 3.2.3 Electrical symbols 3 TOTAL 15 IEB Copyright © 2016

Downloaded from hlayiso.com NATIONAL SENIOR CERTIFICATE: CIVIL TECHNOLOGY – ANSWER BOOKLET Page iii of vii QUESTION 4.4 Quantity Surveying Item Measurement Result Description (4.4.1) 1/ Area of building (2) Perimeter of building 2/ 2/ (3) (4.4.2) Bricks Total wall area (Southern wall) 1/ (1) Door area 1/ (1) Window area 1/ (1) Total area less openings = (1) Total number of bricks (1) (4.4.3) Volume of slab: 1/ (4) (4.4.4) Ratio: 2 Cement: 4 Stone: 4 Sand (1) Cubic meter stone needed: (3) IEB Copyright © 2016 PLEASE TURN OVER

Downloaded from hlayiso.com NATIONAL SENIOR CERTIFICATE: CIVIL TECHNOLOGY – ANSWER BOOKLET Page iv of vii QUESTION 5.2.1 VECTOR DIAGRAM a d b c (6) QUESTION 5.2.2 Determine the magnitude of the following members. Member Magnitude Mark Mark obtained AE 1 FG 1 TOTAL 2 (2) IEB Copyright © 2016

Downloaded from hlayiso.com NATIONAL SENIOR CERTIFICATE: CIVIL TECHNOLOGY – ANSWER BOOKLET Page v of vii QUESTION 5.2.3 Use arrows to indicate the nature of different members on the space diagram. **** Members AE, BF, CG, FG, FE and ED correctly indicated 1 mark. (6) IEB Copyright © 2016 PLEASE TURN OVER

Downloaded from hlayiso.com NATIONAL SENIOR CERTIFICATE: CIVIL TECHNOLOGY – ANSWER BOOKLET Page vi of vii QUESTION 6.1 Mark Question Answer Marks obtained 6.1.1 Name the type of eave shown at A. 1 6.1.2 Identify the missing wooden part at B 1 between the roof covering and the rafter. 6.1.3 Identify part C. 1 6.1.4 Identify part D. 1 6.1.5 Identify part E. 1 6.1.6 Identify part F. 1 6.1.7 Identify part G. 1 6.1.8 What will be the minimum 1 measurement at H on the load- bearing wall foundation? 6.1.9 What will be the minimum 1 measurement at J on the load-bearing foundation? 6.1.10 Explain the meaning of the 1 abbreviation NGL. 6.1.11 Explain the meaning of the 1 abbreviation FFL. 6.1.12 The scale of the Sectional view AA is 1 1:50. Name one other acceptable scale that can be used. 6.1.13 Describe the meaning of the dashed 1 lines on windows. 6.1.14 What will be placed between part G 1 and the slab to prevent penetration of moisture? 6.1.15 Draw the symbol to indicate stock 1 brick on the sectioned wall. TOTAL 15 IEB Copyright © 2016

Downloaded from hlayiso.com NATIONAL SENIOR CERTIFICATE: CIVIL TECHNOLOGY – ANSWER BOOKLET Page vii of vii QUESTION 6.2 Assessment Marks Mark criteria obtained Correct elevation 2 Door 1 Step 1 Roof height 2 Window 1 2 Window 2 2 Gable roof with 2 valley Verge 1 Eave overhang 1 Roof ridge 1 Rainwater pipe 1 Fascia board 1 Height of FFL 1 Height to wall 1 plate Any FOUR labels 4 Neatness 2 TOTAL 25 IEB Copyright © 2016
