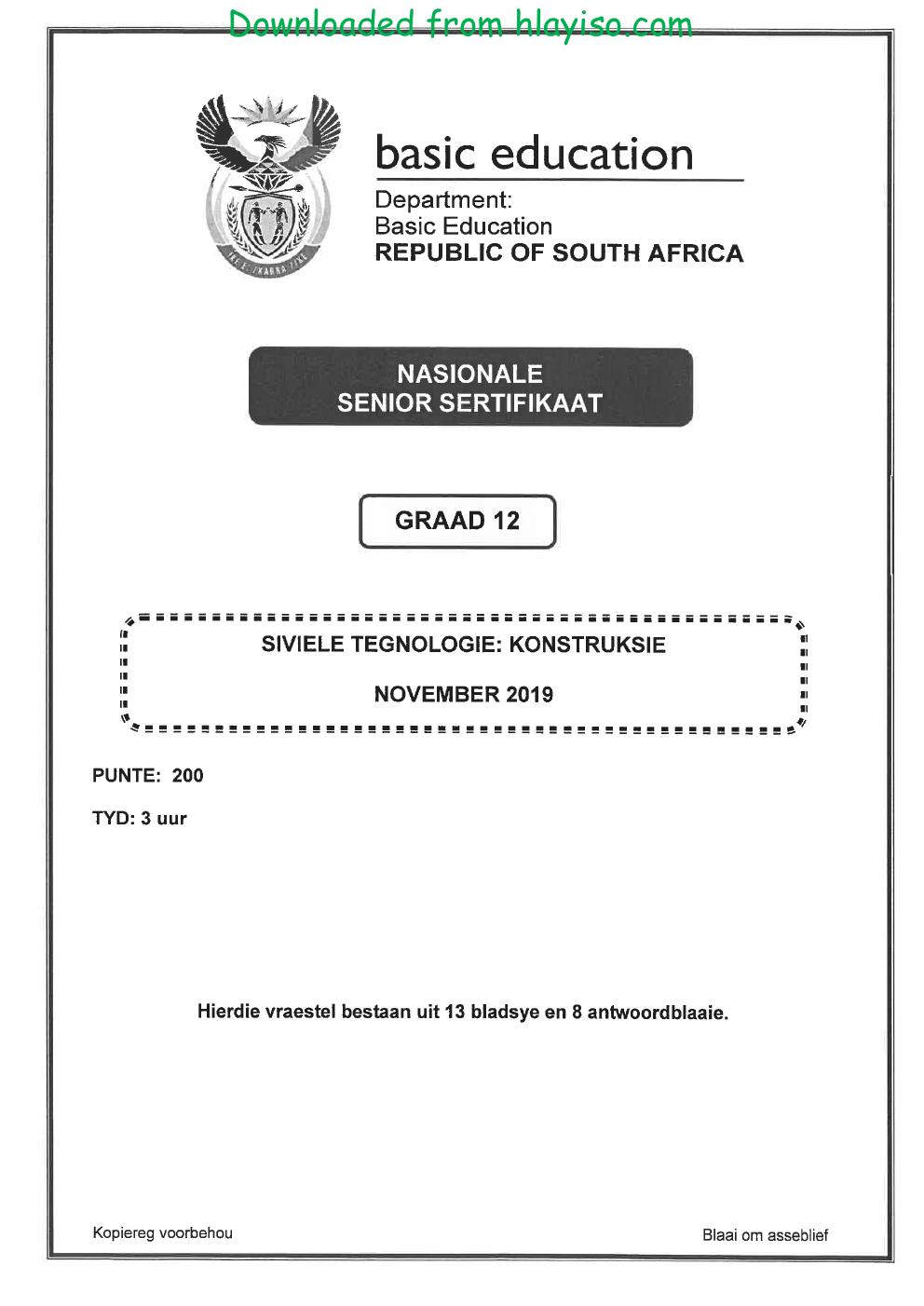

acti eeeeintee meme nenemnneenres eneneeeerenee seten renee Xe basic education \ Department: Ky Basic Education We SW REPUBLIC OF SOUTH AFRICA NATIONAL SENIOR CERTIFICATE GRADE 12 an CIVIL TECHNOLOGY: CONSTRUCTION. : " NOVEMBER 2019 " PPE TTTTTTTerrerrerrerrrrrrrrrerrrrrerrerrrirrri MARKS: 200 | TIME: 3 hours This question paper consists of 13 pages and 8 answer sheets. | Copyright reserved Please turn over
Downloaded from hlayiso.com Civil Technology: Construction DBE/November 2019 NSC REQUIREMENTS: 1. Drawing instruments 2. A non-programmable calculator 3. ANSWER BOOK INSTRUCTIONS AND INFORMATION 1. This question paper consists of SIX questions. 2. Answer ALL the questions. 3. Answer each question as a whole. Do NOT separate subsections of questions. 4. Start the answer to EACH question on a NEW page. 5. Do NOT write in the margins of the ANSWER BOOK. 6. You may use sketches to illustrate your answers. 7. Write ALL calculations and answers in the ANSWER BOOK or on the attached ANSWER SHEETS. 8. Use the mark allocation as a guide to the length of your answers. 9. Make drawings and sketches in pencil, fully dimensioned and neatly finished off with descriptive titles and notes to conform to the SANS/SABS Code of Practice for Building Drawings. 10. For the purpose of this question paper, the size of a brick should be taken as 220 mm x 110 mm x 75 mm. 11. Use your own discretion where dimensions and/or details have been omitted. 12. Answer QUESTIONS 2, 3.4, 3.5, 4.7, 5.6, 5.7, 6.6 and 6.7 on the attached ANSWER SHEETS using drawing instruments where necessary. 13. Write your CENTRE NUMBER and EXAMINATION NUMBER on every ANSWER SHEET and hand them in with your ANSWER BOOK, whether you have used them or not. 14. Drawings in the question paper are NOT to scale due to electronic transfer. 15. Google Images was used as the source of all photographs and pictures. Copyright reserved Please turn over
Downloaded from hlayiso.com Civil Technology: Construction 3 DBE/November 2019 NSC QUESTION 1: OHSA, SAFETY, MATERIALS, TOOLS, EQUIPMENT AND JOINING (GENERIC) Start this question on a NEW page. 4.1 Choose a description from COLUMN B that matches an item in COLUMN A. Write only the fetter (A-K) next to the question numbers (1.1.1 to 1.1.8) in the ANSWER BOOK, e.g. 1.1.9 L. COLUMN A COLUMN B 1.1.1 PVA paint A _— method of finishing metal exposed to heavy wear and tear conditions 1.1.2 Guard rail B can be applied to walls 1.1.3. Powder coating C keeps rungs free from oil and grease 1.1.4 Builder's hoist D light material used in the 1.1.5 Ladder manufacturing of door and window frames 1.1.6 Diagonal brace . E used as a means to dispose of waste 1.1.7 Galvanising material and debris from elevated areas in the fastest possible way 1.1.8 Chute keeps scaffolds stable when erected G __ transports workers, materials and equipment between ground and upper levels H gates should always be kept shut when the device is being used 1 prevents people from falling off the scaffolds J zine coating applied to the base of metal K__used to delay the drying time of paint (8 x 1) 1.2 Explain TWO advantages of electroplating. 1.3 Name the process when freshly cast concrete is kept moist for a specific period of time. Copyright reserved Please turn over (8) (2) (1)
Downloaded from hlayiso.com Civil Technology: Construction 4 DBE/November 2019 NSC 1.4 Explain the purpose of keeping freshly cast concrete moist for a certain period of time after the concrete has been cast. (1) 1.5 You are transporting material on a construction site from one place to another. Describe TWO safety precautions that you will adhere to while transporting the material. (2) 1.6 Describe ONE safety factor that must be considered when using scaffold planks to erect a scaffold platform. (1) 17 FIGURE 1.7 below shows a surveying tool used on a building site. FIGURE 1.7 1.7.1 Identify the tool above. (1) 1.7.2 Predict ONE consequence if the instrument is NOT set level. (1) 1.8 FIGURE 1.8 below shows a joining fixture that is used on building sites and in workshops. if 4 ¥- FIGURE 1.8 1.8.1 Identify the joining fixture above. (1) 1.8.2 Name the fixing agent that should be used with this joining fixture. (1) 1.8.3 Explain ONE use of this joining fixture. (1) [20} Copyright reserved Please turn over
Downloaded from hlayiso.com Civil Technology: Construction DBE/November 2019 NSC QUESTION 2: GRAPHICS AS MEANS OF COMMUNICATION (GENERICS) Start this question on a NEW page. FIGURE 2 on the next page shows different drawings that appear on a building plan. Analyse the drawings and complete the table on ANSWER SHEET 2. Copyright reserved Please turn over
Downloaded from hlayiso.com Civil Technology: Construction 6 NSC DBE/November 2019 K 7 \ On Lk) — PK © T TT GE © FIGURE A SCALE 1 : 100 NOTE: Contractors must verify all dimensions and levels on site before commencing work. Architects must be notified of any discrepancies immediately. Wall thickness: External = 220 mm Internal = 110 mm ARCHITECT'S SIGNATURE CLIENT'S SIGNATURE The following electrical installation should be installed in the kitchen: Ww The following symbol! shows the type of brick finishing that will be used for the building: REVISION | DATE | DESCRIPTION F 2600 ___y __3.400 _ y PRINTED BY: DATE OF PRINT: KF + DLAMINIPRINTERS — 2019/04/01 w2 w1 DRAWING TITLE: _s) a SITE PLAN STAND 502 * o o e J oO [2 PROJECT: PROPOSED DWELLING ON STAND 502, ol BATHROOM @) ® DEO PARK 2 ° “ KITCHEN PROJECT NO. DRAWING NR. GR 228-201 339P9 @) = S DATE | DRAWN | CHECKED |SCALE 16/4/2019 | JP MBALI | P CARTER |1: 100 ®) REFERENCE CODE ol LOUNGE QP 2-2019 oO a = WINDOW 4 WINDOW 2 BEDROOM @[Q | 2000 aN e. = 900. —*- Os , Wa wi a r, a RT S| |. RB S| [N FIGURE B bea F; , Ny SCALE 1: 100 eS “ N FIGURE 2 [40] Copyright reserved Please turn over
Civil Technology: Construction Downloaded from hlayiso.com DBE/November 2019 NSC QUESTION 3: ROOFS, STAIRCASES AND JOINING (SPECIFIC) Start this question on a NEW page. 3.1 3.2 3.3 3.4 3.5 Give ONE word/term for each of the following descriptions by choosing a word/term from the list below. Write only the word/term next to the question numbers (3.1.1 to 3.1.3) in the ANSWER BOOK, e.g. 3.1.4 50 mm round poles. 15°; 800mm; 36mm round poles; 10°; 38mm round poles; 650 mm; 45°; 550mm; 40 mm round poles 3.1.1 What is the minimum pitch of a roof when Class B fibre-cement tiles are used to cover a roof? 3.1.2 What is the maximum distance of the spacing between roof trusses for concrete roof tiles? 3.1.3 What are the dimensions of a purlin for thatch roofs? Recommend ONE method of fixing balusters to the landing of a staircase. Recommend ONE type of fastener one will use to fix galvanised steel straps to roof trusses. Use ANSWER SHEET 3.4 and draw a neat line diagram of the sectional front view of a staircase with a landing. Use the assessment criteria on the ANSWER SHEET as a guide. Use ANSWER SHEET 3.5 and draw to scale 1 : 20 a close-coupled roof truss with a pitch of 30° and a span of 3 metres resting on two supporting walls. The eaves overhang is 400 mm. Use the assessment criteria on the ANSWER SHEET as a guide. Copyright reserved Please turn over (1) (1) oo) (1) (1) (10) (15) [30]
Downloaded from hlayiso.com Civil Technology: Construction DBE/November 2019 NSC QUESTION 4: EXCAVATIONS, FORMWORK, TOOLS, EQUIPMENT AND MATERIALS (SPECIFIC) Start this question on a NEW page. 41 The excavation of soil on a building site is necessary to establish a firm foundation. 4.1.1 What is the minimum distance that excavated soil can be stored from the trench? (1) 4.1.2 What is a safe distance for heavy machinery to move around a deep excavation? (1) 4.1.3 Describe TWO reasons why an excavation can collapse. (2) 4.1.4 What is the maximum depth of a trench in which workers can work without the sides of the trench being braced? (1) 4.1.5 What can help to prevent the sides of excavations from collapsing? (1) 4.2 FIGURE 4.2 below shows two types of shuttering used in excavations. Study FIGURE 4.2 below and answer the questions that follow. FIGURE 4.2 4.2.1 State where shuttering A and B will be used respectively. (2) 4.2.2 Name C and D. (2) 4.2.3 Compare FIGURE A with FIGURE B and state the difference between the types of shuttering. (2) Copyright reserved Please turn over
Downloaded from hlayiso.com Civil Technology: Construction 9 DBE/November 2019 NSC 4.3 FIGURE 4.3 below shows a construction machine that is used on a building site. Study FIGURE 4.3 and answer the questions that follow. FIGURE 4.3 4.3.1 Identify the construction machine. (1) 4.3.2 Describe TWO methods that can be used to take care of this construction machine. (2) 4.3.3 Describe TWO safety aspects that must be checked before using the construction machine. (2) 44 What should be the minimum compressive strength of high-strength concrete after 28 days if all conditions have been met? (1) 4.5 Name the THREE outcomes of the slump test. (3) 46 Which water-retaining material can be used to keep fresh concrete moist? (1) 47 Use ANSWER SHEET 4.7 and complete the drawing of a vertical section of the formwork for a concrete beam with the floor slab in good proportion. Use the assessment criteria on the ANSWER SHEET as a guide. (18) [40] Copyright reserved Please turn over
Downloaded from hlayiso.com Civil Technology: Construction 1 DBE/November 2019 NSC QUESTION 5: PLASTER AND SCREED, BRICKWORK AND GRAPHICS AS MEANS OF COMMUNICATION (SPECIFIC) Start this question on a NEW page. 5.1 Name ONE type of plaster finish that can be applied to brick walls. (1) 5.2 State the first step before plastering an internal wall two weeks after it has been built. (1) 5.3 State ONE property of good plaster. (1) 5.4 State the average thickness of screed. (1) 5.5 FIGURE 5.5 below shows a vertical sectional view through paving. Study FIGURE 5.5 and answer the questions that follow. A a -——— B . . _ oe pe D FIGURE 5.5 5.5.1 Name A to D. (4) 6.5.2 Give ONE reason why construction failure can occur in paved areas. (1) 5.6 ANSWER SHEET 5.6 shows the outlines of the top view of a cavity wall with a dead end. Use ANSWER SHEET 5.6 and draw ONE brick course of the cavity wall with a wall tie. (7) 5.7 Use ANSWER SHEET 5.7 and draw to scale 1 : 5 a horizontal sectional view through a face brick wall to show how a timber window frame stile is built into a wall. Use the assessment criteria on the ANSWER SHEET as a guide. (14) [30] Copyright reserved Please turn over
Downloaded from hlayiso.com Civil Technology: Construction 11 DBE/November 2019 NSC QUESTION 6: REINFORCEMENT IN CONCRETE, FOUNDATIONS, CONCRETE FLOORS AND QUANTITIES (SPECIFIC) Start this question on a NEW page. 6.1 Various options are given as possible answers to the following questions. Choose the answer and write only the letter (A-D) next to the question numbers (6.1.1 to 6.1.5) in the ANSWER BOOK, e.g. 6.1.6 C. 6.1.1 The striking of formwork for a deck depends on the ... A average temperature. B __ thickness of the concrete. C properties of the concrete. D_ All the above-mentioned 6.1.2 The minimum thickness of a suspended reinforced concrete floor is ... A 100 mm. B 150 mm. Cc 160 mm. D 140 mm. 6.1.3 What type of foundation will be used where the site is NOT level? A __ Strip foundation B_ Floating foundation C_ Step foundation D_ Raft foundation 6.1.4 The internal walls that support a suspended concrete floor must be... A _ vertically in line with the external walls. B__ one brick course below the floor. C horizontally in line with the external walls. D__ one brick course above the floor. 6.1.5 The minimum cover depth for concrete with reinforcement exposed to soft unpolluted air is ... A 60mm. B 40mm. C 30mm. D 20mm. 6.2 Give TWO reasons for using pile foundations. 6.3 Recommend THREE types of equipment that can be used to install precast concrete piles. Copyright reserved Please turn over (1) (1) (1) (1) (1) (2) (3)
Downloaded from hlayiso.com Civil Technology: Construction 12 DBE/November 2019 NSC 6.4 Differentiate between the installation methods of steel-tube caisson piles and precast concrete piles. (2) 6.5 FIGURE 6.5 below shows a part of a floor construction. Study FIGURE 6.5 and answer the questions that follow. =e N A Se @ $ -a}-a FIGURE 6.5 6.5.1 Name the type of floor construction. (1) 6.5.2 Describe THREE factors that should be considered after casting the concrete for the floor construction. (3) 6.5.3 What type of concrete is used for this type of floor? (1) 6.5.4 What will determine the spacing between parts A? (1) 6.5.5 Predict what will happen if the floor is subjected to a lot of movement before the concrete has reached its maximum strength. (1) 6.6 ANSWER SHEET 6.6 shows a wall and an incomplete reinforced concrete beam. Use ANSWER SHEET 6.6 and draw, in good proportion, the reinforcement that should be placed in the beam that is resting on the wall. Use the assessment criteria on the ANSWER SHEET as a guide. (11) Copyright reserved Please turn over
Downloaded from hlayiso.com Civil Technology: Construction 13 DBE/November 2019 NSC 6.7 FIGURE 6.7 below shows the floor plan of a building with a gable roof. The external measurements are 9 000 mm x 4 000 mm. 4 000 9 000 150 +~— FIGURE 6.7 Use the following specifications: e The walls are 220 mm thick. e The centre-to-centre spacing of the roof trusses are 1 070 mm. Use the dimension paper in ANSWER SHEET 6.7 and calculate the quantities of the following materials: 6.7.1 Total length of wall plate needed in metres 6.7.2 Number of roof trusses needed TOTAL: Copyright reserved (5) (5) [40] 200
Downloaded from hlayiso.com Civil Technology: Construction DBE/November 2019 NSC | CENTRE NUMBER: ee ee | [EXAMINATION NUMBER: | | LJ [|] TT TT Tl ANSWER SHEET 2 NO. QUESTION ANSWER MARKS 1 Identify the elevation in FIGURE A. 1 2 Identify the type of roof that is used on 1 the building in FIGURE A. 3 Identify number 1. 1 4 Identify number 4. 1 5 Identify number 5. 1 6 Identify number 7. 1 7 Identify number 8. 1 8 Identify number 12. 1 9 Identify number 13. 41 10 Identify number 15. 1 Identify the company that printed the 1 oan 1 building plan. Name a suitable material that can 12 be used for the manufacturing of 41 number 2. Name the drawing symbol in the 13 column for the notes in FIGURE 2 that 1 must be installed in the kitchen. Name the drawing symbol in the 14 column for the notes in FIGURE 2 that 1 indicates the type of bricks for the building. Name a material that should NOT be 15 used to manufacture the frame of 1 number 9 for coastal areas. Copyright reserved
Downloaded from hlayiso.com Civil Technology: Construction DBE/November 2019 NSC Name a material that can be used to 16 manufacture the sanitary fitting indicated by number 11. 17 | Who checked the building plan? 18 How many types of windows are used in FIGURE B? What does the abbreviation NGL at 19 number 6 stand for? 20 Give the reference code for this plan. 21 Which room will electrical symbol 16 serve? 22 Describe the purpose of number 3. Explain what the curved lines 23 between the electrical installations in FIGURE B indicate. Explain why the light switch is 24 mounted on the outside of the bathroom. Identify in FIGURE 2 which elevation 25 does NOT have windows. 26 Identify the thickness of the internal wall in FIGURE 2. Differentiate between symbols 13 and 27 15 in terms of their purpose. Justify why FIGURE B is a ground 28 floor plan. Copyright reserved
Downloaded from hlayiso.com Civil Technology: Construction NSC DBE/November 2019 29 Predict what will happen if number 10 is NOT installed. 30 Redraw the staircase in FIGURE B in the adjacent column and indicate the direction of the flight with arrows. 31 Calculate the total length of the wall on the eastern side of the building. Show ALL calculations. TOTAL: 40 Copyright reserved
Downloaded from hlayiso.com Civil Technology: Construction DBE/November 2019 NSC [ CENTRE NUMBER: TT tT tT tT tT TT] | EXAMINATION NUMBER: [| TT I | | 7 | ANSWER SHEET 3.4 ASSESSMENT CRITERIA MARK | CANDIDATE'S MARK Wall Landing Baluster Handrails THREE treads Concrete Any TWO labels Correctness of drawing Slel|N/s]4/y)a)3)/= TOTAL: Copyright reserved
Iso.com SL TWLOL } = yoeuoour 4AI4 uey) Slop @ =JoalOoul YNOS 40 AAYHL €= yoavoou!l OML JO INO rayeos yo uoneayddy ueds ou} JO UOISUSWIG sjeqe| SAH. Auy Downloaded from hlay weag aif weoq abply siayey pavesal yysuAdoy s'€ LASHS YAMSNV sayeld |e | ?Y3E1NNN NOILVNIAVXG | QUAN Nee SIIEM YvIA S.ALVGIGNVO YVIN VIdSLIdD LNSAWSSSSSV 6102 JequisAoN/agq OSN TUASINNN SYN | uononsjsuog :ABojouYde | |IAID.
Downloaded from hlayiso.com Civil Technology: Construction DBE/November 2019 NSC | CENTRE NUMBER: LT | [| |] [| [ 7 J 4] [EXAMINATION NUMBER: |__| [TT TT] | | ANSWER SHEET 4.7 aS [ ic | °o 3] oo a 0 FIGURE 4.7 ASSESSMENT CRITERIA MARK | CANDIDATE'S MARK Shuttering board sides 2 Cleats 2 Fixing plates 2 Wedges 2 Braces/Struts 4 Bearer 1 Any THREE labels 3 Correctness of drawing 2 TOTAL: 18 Copyright reserved
Downloaded from hlayiso.com Civil Technology: Construction DBE/November 2019 NSC [CENTRE NUMBER: TTT TTT TT [EXAMINATIONNUMBER: | | | | | | | | | [| | | | 4 ANSWER SHEET 5.6 FIGURE 5.6 ASSESSMENT CRITERIA MARK | CANDIDATE'S MARK Correctness of drawing Dead end Inner skin of cavity wall Outer skin of cavity wail Wall tie N]}s/—3/s p/p TOTAL: Copyright reserved
Downloaded from hlayiso.com Civil Technology: Construction DBE/November 2019 NSC [ CENTRE NUMBER: TTT TT TT TT [EXAMINATIONNUMBER: | | | | | | | | | | | | JI id ANSWER SHEET 5.7 ASSESSMENT CRITERIA MARK | CANDIDATE'S MARK Frame stile: 105 mm x 70 mm Window stile/Casement stile: 60 mm x 45 mm Frame tie/lug: 25 mm wide Glass: 3 mm thick Putty Internal window sill External window sill DPC Any ONE label Application of scale: ONE or TWO incorrect THREE or FOUR incorrect More than FIVE incorrect a }o3)o3}/3] 4) 4)/-.)/po|p touou 3 2 1 TOTAL: 14 Copyright reserved
Downloaded from hlayiso.com Civil Technology: Construction DBE/November 2019 NSC [CENTRENUMBER: | | | | | | | | 4 [EXAMINATION NUMBER: | [| | | | | [|] [ 7 TT 4] ANSWER SHEET 6.6 FIGURE 6.6 ASSESSMENT CRITERIA MARK | CANDIDATE'S MARK Anchor bar 2 Shear bar 2 Stirrups/Binders 2 Main bar 2 | Minimum concrete cover 1 Any ONE label 1 Correctness of drawing 1 TOTAL: 11 Copyright reserved
Downloaded from hlayiso.com Civil Technology: Construction DBE/November 2019 NSC [ CENTRE NUMBER: TTT TTT TT 4) [EXAMINATIONNUMBER: | | | | | | [| | | | | [| [4 ANSWER SHEET 6.7 A B c D (10) Copyright reserved
