NATIONAL
SENIOR CERTIFICATE
GRADE 12
MECHANICAL TECHNOLOGY: WELDING AND METALWORK
NOVEMBER 2024
MARKING GUIDELINES
MARKS: 200
These marking guidelines consists of 19 pages.
Copyright reserved Please turn over
Skip to contentAll 2024 papers %20Eng--5d2e2bd0-b02f-4218-849f-e7933bc6c4d1/v1-2dba8a1dc6758c98b205/card.webp)
%20Afr--1e7205e4-aef1-4cc4-afdf-aac93562ae67/v1-094abcfa5c3eff1cb995/card.webp)
%20Eng--10859467-be3e-41fb-aee0-b797c385437d/v1-986e8982bfb6b966a34d/card.webp)

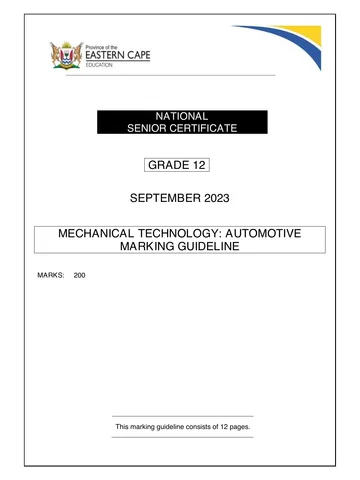

%20GR12%20MEMO%20SEPT2023_English_hlayiso.com_--dfc975c1-e179-4741-8d4f-e3b20c744c7e/v1-c61c66086bf36fcf31e0/card.webp)
View all


%20Afr_hlayiso.com_--7d638feb-7218-4b3c-9f4c-ce95803d6e4f/v1-e8a08d94a30d7d50ccd0/card.webp)
%20Eng_hlayiso.com_--1523a16f-2012-4f13-a922-86cbb5900666/v1-5068227f3cbbba17b78f/card.webp)
%20Afr_hlayiso.com_--8d31d25d-e192-4aa9-b448-efab233391a1/v1-28cf2259fca9bcde2f63/card.webp)
Mechanical Technology Grade 12 November 2024 NSC Memo (Eng)
Grade 12 Mechanical Technology memorandum from the November 2024 NSC (English), 19 pages. Read online or download the free PDF.
Mechanical Technology · Grade 12 · November 2024 NSC · 2024. Memorandum. Read online or download the PDF.
- Subject
- Mechanical Technology
- Grade
- Grade 12
- Document type
- Memorandum
- Year
- 2024
- Exam period
- November 2024 NSC
- Curriculum
- CAPS
- Pages
- 19
- File size
- 479.9 KB
Free to read online, no sign-up needed
Loading document…
Loading document…
1 of 19
This exam
Document textSearch extracted text and jump to a page.
Mechanical Technology: Welding and Metalwork 2 DBE/November 2024
NSC – Marking Guidelines
QUESTION 1: MULTIPLE-CHOICE (GENERIC)
1.1 A✓ (1)
1.2 D✓ (1)
1.3 A✓ (1)
1.4 B✓ (1)
1.5 D✓ (1)
1.6 C✓ (1)
[6]
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 3 DBE/November 2024
NSC – Marking Guidelines
QUESTION 2: SAFETY (GENERIC)
2.1 Horizontal band saw (Already been switched on):
• Never leave the band saw unattended while in motion. ✓
• Switch off the band saw when leaving. ✓
• Use a brush or wooden rod to remove chips/swarf/filings. ✓
• When reaching around a revolving band saw, be careful that your
clothes do not get caught in the blade.
• Don't stop a revolving bandsaw blade with your hand. ✓
• Don't adjust the band saw while working. ✓
• Don't open any guard while in motion. ✓
• Keep hands away from action points. ✓
• Do not force the band saw blade into the material. ✓
• Apply cutting fluid if required. ✓
• Avoid overcrowding of persons around the machine. ✓
• Do not lean on the machine. ✓
• Check if the machine is running smoothly. ✓
(Any 2 x 1) (2)
2.2 First aid basic treatment:
• Examination ✓
• Diagnosis ✓
• Treatment ✓ (3)
2.3 Oxygen fittings with oil and grease:
It forms a flammable mixture. ✓ (1)
2.4 Disadvantages of the process layout:
• Production is not always continuous. ✓
• Transportation costs between process departments may be high. ✓
• Additional time is spent in testing and sorting as the product moves to
the different departments. ✓
• Damage to fragile goods may result from extra handling. ✓
(Any 2 x 1) (2)
2.5 Advantages of the product layout:
• Handling of material is limited to a minimum. ✓
• Time period of manufacturing cycle is less. ✓
• Production control is almost automatic. ✓
• Control over operations is easier. ✓
• Greater use of unskilled labour is possible. ✓
• Less total inspection is required. ✓
• Less total floor space is needed per unit of production. ✓
(Any 2 x 1) (2)
[10]
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 4 DBE/November 2024
NSC – Marking Guidelines
QUESTION 3: MATERIALS (GENERIC)
3.1 Filing test:
3.1.1 Files easily (1)
3.1.2 Hard to file (1)
3.1.3 Files easily (1)
3.2 Heat treatment:
It is the heating and cooling of metals under controlled conditions / as
to change their properties. (3)
3.3 Heating of metal:
If metal is heated too fast, the outside of the metal becomes hotter than
the inside, then it is very difficult to achieve a uniform structure. (4)
3.4 Case hardening:
• Low-carbon steel / Mild steel
• Low-alloy steel (2)
3.5 Tempering:
• It is to relieve the strains induced during the hardening process.
• Increase toughness.
• Decrease brittleness.
• Achieve a finer grain structure.
(Any 1 x 2) (2)
[14]
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 5 DBE/November 2024
NSC – Marking Guidelines
QUESTION 4: MULTIPLE-CHOICE (SPECIFIC)
4.1 D✓ (1)
4.2 B✓ (1)
4.3 D✓ (1)
4.4 B✓ (1)
4.5 C✓ (1)
4.6 B✓ (1)
4.7 C✓ (1)
4.8 D✓ (1)
4.9 B✓ (1)
4.10 A✓ (1)
4.11 C✓ (1)
4.12 A✓ (1)
4.13 B/C ✓ (1)
4.14 D✓ (1)
[14]
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 6 DBE/November 2024
NSC – Marking Guidelines
QUESTION 5: TERMINOLOGY (TEMPLATES) (SPECIFIC)
5.1 Template loft separation:
• It is quieter. ✓✓
• The lighting is better. ✓✓
• All equipment is readily available. ✓✓
• It is a permanent base. ✓✓
• Marking on the floor enhances accuracy. ✓✓
• Specialists works in the template loft. / More specialised work is done in
the template loft. ✓✓
(Any 1 x 2) (2)
5.2 Template loft tools: (Due to the large number of alternatives, marker
discretion must be used - discuss with IM).
• Hand saws ✓
• Chisels ✓
• Plane ✓
• Drill and drill bits ✓
• Steel tape ✓
• Straight edge ✓
• Compass ✓
• Trammel pins ✓
• Carpenter's square ✓
• Protractor ✓
• Chalk line ✓
• Clamps. ✓
(Any 3 x 1) (3)
5.3 Steel ring calculations:
5.3.1 Mean Ø = Outside Ø − Plate thickness
= 980 − 25 ✓
= 955 mm ✓ (2)
5.3.2 Mean circumfere nce = π × Mean Ø
= π × 955 ✓
= 3000,22 ✓
= 3000 mm ✓ (3)
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 7 DBE/November 2024
NSC – Marking Guidelines
5.4 Factors for selecting materials for templates:
• Durability ✓
• Cost effective ✓
• Light weight ✓
• Moisture resistant ✓
• Flexible ✓
• Size ✓
• Accuracy required ✓
(Any 2 x 1) (2)
5.5 Fillet weld on T–joint:
✓ ✓
✓ 50 ✓
✓ 10 – 100 ✓
Arc
✓ ✓
✓
(9)
5.6 Welding symbols:
5.6.1 Spot weld:
X ✓
(1)
5.6.2 Seam weld:
✓
(1)
[23]
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 8 DBE/November 2024
NSC – Marking Guidelines
QUESTION 6: TOOLS AND EQUIPMENT (SPECIFIC)
6.1 Working principles of:
6.1.1 Punch and cropping machine:
• Cropping machines are electrically driven. ✓
• Uses a heavy fly wheel/hydraulics and clutch system. ✓
• It engages various blades/punches. ✓
• Uses shearing/punching motion to cut the various profiles. ✓ (4)
6.1.2 Resistance welding machine:
• Current flows through a resistance to fuse plates together.
• Two copper electrodes are pressed against the plates.
• Heavy current is passed between the electrodes.
• The two plates melt and fuse together, forming a weld
nugget or spot weld. (4)
6.2 Uses of the drill press:
• Drilling ✓
• Ream work ✓
• Countersinking ✓
• Sawing – hole saw ✓
• Sanding ✓
• Wire brushing ✓
• Buffing/Polishing ✓
• Boring ✓
• Tapping ✓
• Spot facing ✓
• Honing ✓
(Any 3 x 1) (3)
6.3 Types of taps:
• Taper tap/starting tap/first tap ✓
• Intermediate/second tap ✓
• Plug or bottoming tap ✓ (3)
6.4 Brinell hardness test procedure:
• Makes use of a steel ball as indenter. ✓
• A load is applied to the test piece. ✓
• The diameter of the indentation is measured with a microscope. ✓
• The diameter is used to determine the Brinell reading. ✓ (4)
[18]
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 9 DBE/November 2024
NSC – Marking Guidelines
QUESTION 7: FORCES (SPECIFIC)
7.1 Beams:
7.1.1 Calculate the reaction left (RL):
Take moments about RR:
✓ ✓ ✓
RL ×10 = (50 × 2) + (75 × 5) + (60 × 8)
= 100 + 375 + 480
955
RL =
10
= 95,5 N ✓
Calculate the reaction right (RR):
Take moments about RL:
✓ ✓ ✓
RR ×10 = (60 × 2) + (75 × 5) + (50 × 8)
= 120 + 375 + 400
895
RR =
10
= 89,5 N ✓ (8)
7.1.2 Bending moments:
BMB = (95,5 2 ) − (60 0)
= 191 Nm ✓
BM C = (95,5 5 ) − (60 3) − (75 0) ✓
= 297,5 Nm ✓
BMD = (95,5 8 ) − (60 6) − (75 3) − (50 0) ✓
= 179 Nm ✓ (5)
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 10 DBE/November 2024
NSC – Marking Guidelines
7.1.3 Bending moment diagram:
297,5 Nm
✓ ✓
191 Nm 179 Nm
✓
✓ ✓
✓
0 0
Note to marker:
Marker must redraw the bending moment diagram
according to given scales for marking purposes. (6)
7.2 Stress and Strain:
7.2.1 Area:
πD 2
A=
4
π(0,038) 2
=
4
= 1,13 × 10 -3 m 2
(2)
7.2.2 Stress:
F
Stress =
A
120 10 3
=
1,13 10 -3 m 2
= 106,19 MPa (3)
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 11 DBE/November 2024
NSC – Marking Guidelines
7.2.3 Strain:
Δl
ε =
ol
0,55
ε =
125
= 0,0044 or 4,4 ×10 -3 (3)
7.2.4 Calculation of Young's
Modulus:
stress
E =
strain
106,19
=
4,4 10 -3
= 24,13 GPa (3)
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 12 DBE/November 2024
NSC – Marking Guidelines
7.3 Simple frame:
7.3.1 Space diagram:
800 N
A B
D
C
400 N
400 N
3 MARKS FORARROWS
1 MARK FOR DRAWING TO SCALE ✓ (4)
7.3.2 Vector diagram:
a
d c
b
NOTE: Draw to scale on transparency for marking purpose
Tolerance of 2 mm.
(5)
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 13 DBE/November 2024
NSC – Marking Guidelines
7.3.3 Magnitude and nature of force:
Member Force Nature
AD 810 N(790-830) ✓ Strut ✓
BD 810 N(790-830) ✓ Strut ✓
CD 700 N(680-720) ✓ Tie ✓ (6)
[45]
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 14 DBE/November 2024
NSC – Marking Guidelines
QUESTION 8: JOINING METHODS (INSPECTION OF WELD) (SPECIFIC)
8.1 Factors to consider during the inspection of welds:
• Bead ✓
• Width
• Height ✓
• Fusion
• Penetration ✓
• Pits ✓
• Undercutting ✓
• Distortion ✓
• Cracks ✓
• Spatter ✓
• No Slag inclusion ✓
• Proper start of weld ✓
• Termination of weld ✓
(Any 2 x 1) (2)
8.2 Welding defects:
8.2.1 Weld spatter:
• Too low welding voltages. ✓
• Too high welding current. ✓
• Arc length too long. ✓
• Not applying anti-spatter spray. ✓
• Electrode angle too small. ✓
• Welding speed incorrect. ✓
• Wrong polarity (DC). ✓
• Contaminated surface. ✓
• Wet electrodes. ✓
• Inadequate consumables. (e.g wrong electrodes, not enough
shielding gas, etc.) ✓
(Any 2 x 1) (2)
8.2.2 Cracks:
• Wrong selection of electrode. ✓
• A restrained welded joint. ✓
• Fast cooling. ✓
• Improper welding technique. ✓
• Absence of preheating and post-heating of the joint. ✓
• Parent metal of poor weldability/High carbon content. ✓
• High residual stress on the base metal. ✓
(Any 2 x 1) (2)
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 15 DBE/November 2024
NSC – Marking Guidelines
8.3 Preventions for welding defects:
8.3.1 Incomplete penetration:
• Use correct arc length. ✓
• Use correct electrode angle. ✓
• Use correct current setting. ✓
• Use correct travel speed. ✓
• Use correct joint preparation/Remove mould scale/Clean
joint. ✓
(Any 2 x 1) (2)
8.3.2 Undercutting:
• Decrease arc travel speed. ✓
• By raising arc voltage. ✓
• By lowering arc voltage. ✓
• By lowering the current. ✓
• Ensure proper joint preparation/Remove mould scale/Clean
joint. ✓
• Use correct electrode angle. ✓
(Any 2 x 1) (2)
8.4 Label weld dimension:
A. Penetration ✓
B. Width ✓
C. Height/Reinforcement/Cap height/Overfill ✓
D. Weld bead/Deposited metal ✓
E. Base metal/Work-piece/Test piece/Parent metal ✓ (5)
8.5 Machinability test for welded joints:
• To evaluate the surface finish. ✓
• To evaluate the integrity of the weld. ✓
• To evaluate defects such as porosity, inclusions or excessive
hardness. ✓
• To determine the ease of machining. ✓
(Any 2 x 1) (2)
8.6 Free-bend test on a welded joint:
• To determine the percentage elongation of a welded metal. ✓
• It measures the ductility of the weld deposit. ✓
• It measures the heat affected area adjacent to the weld. ✓
(Any 2 x 1) (2)
8.7 Label X-ray test:
A. Gamma ray/X-rays ✓
B. Radioactive source/X-ray machine ✓
C. Test piece/Work piece ✓
D. Photographic film/Film ✓ (4)
(23)
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 16 DBE/November 2024
NSC – Marking Guidelines
QUESTION 9: JOINING METHODS (STRESSES AND DISTORTION) (SPECIFIC)
9.1 Factors affecting grain size of steel:
• The prior amount of cold work. ✓
• The temperature and time of the annealing process. ✓
• The composition/Type of steel. ✓
• The melting point. ✓ (4)
9.2 Factors that affect distortion and residual stress:
• Welding current ✓
• Type/Size of electrode ✓
• Cooling rate ✓
• Size/Thickness of the material ✓
(Any 3 x 1) (3)
9.3 Label iron-carbon equilibrium diagram:
A. Carbon percentage ✓
B. Temperature in degrees Celsius ✓
C. AC3 / Higher critical temperature ✓
D. AC1 / Lower critical temperature ✓ (4)
9.4 Quenching media:
• Oil ✓
• Water ✓
• Brine ✓
• Air ✓
• Liquid salts ✓
• Sand ✓
• Ash ✓
• Lime ✓
• Molten lead ✓
• Nitrogen air-infused air ✓
(Any 2 x 1) (2)
9.5 Stress relieving:
• Annealing ✓
• Tempering ✓
• Normalising ✓
(Any 1 x 1) (1)
9.6 Definition of terms:
9.6.1 Distortion:
Distortion is the warping ✓ of the base plate caused by heat. ✓ (2)
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 17 DBE/November 2024
NSC – Marking Guidelines
9.6.2 Elastic deformation:
Is the ability of a material to regain its shape ✓ after the stresses
have been relieved. ✓ (2)
[18]
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 18 DBE/November 2024
NSC – Marking Guidelines
QUESTION 10: MAINTENANCE (SPECIFIC)
10.1 Maintenance in operating systems:
• It helps prolong the lifespan of hardware. ✓
• Minimizes downtime. ✓
• Improves system security. ✓
• Ensures efficient operation. ✓
• Improves safety. ✓
(Any 2 x 1) (2)
10.2 Lack of lubrication:
• It causes increased friction between moving parts. ✓
• It causes excessive heat. ✓
• It causes wear. ✓
• Potential damage to components. ✓
(Any 2 x 1) (2)
10.3 Overloading machine:
• Premature failure of machine components. ✓
• Decreased lifespan. ✓
• It can create a safety hazard. ✓
(Any 2 x 1) (2)
10.4 Maintenance guidelines for a power saw:
• Visual checks of electrical wiring. ✓
• Clearing the workspace. ✓
• Lubricating moving parts. ✓
• Monitor wheel bearings. ✓
• Checking hydraulic oil. ✓
• Repairing any existing leaks. ✓
• Check blade tension. ✓
• Check for proper alignment. ✓
• Inspect belts for wear. ✓
• Daily inspect the chip removal system/band guides. ✓
• Align vice to blade. ✓
• Check that guards are in place. ✓
• Blade condition. ✓
(Any 2 x 1) (2)
[8]
Copyright reserved Please turn over
Mechanical Technology: Welding and Metalwork 19 DBE/November 2024
NSC – Marking Guidelines
QUESTION 11: TERMINOLOGY (DEVELOPMENT) (SPECIFIC)
11.1 Gravity flow:
To discharge ✓ its content at the bottom. ✓ (2)
11.2 Value of X:
X = 40 2 + 30 2 ✓
= 1600 + 900
✓
= 2500 ✓
= 50 mm ✓ ✓
✓ (3)
11.3 ✓
✓
Square to square off centre hopper:
✓
11.3.1 B-3:
✓ ✓ ✓
B − 3 = 300 + 600 + 850 2
2 2
= 90000 + 360000 + 722500
= 1172500 ✓
= 1082,82 mm ✓ (5)
✓
11.3.2 X-Y: ✓✓
✓ ✓
✓
X - Y = 250✓ + 850 2
2
= 62500 + 722500
= 785000 ✓
= 886 mm ✓ (4)
✓
11.3.3 C- 4: ✓✓
✓ ✓ ✓
✓ 2 + 850 2
C - 4 = 700 2 + 350
= 490000 + 122500 + 722500
= 1335000 ✓
= 1155,42 mm ✓ (5)
✓
11.4 Square to square ✓ hopper on ✓
centre. ✓ (2)
✓
[21]
✓
TOTAL: 200
Copyright reserved
Study this subject
Recommended for this subject
%20Eng--5d2e2bd0-b02f-4218-849f-e7933bc6c4d1/v1-2dba8a1dc6758c98b205/card.webp)
Question paper
Mechanical Technology Grade 12 November 2024 NSC QP (Eng)
%20Afr--1e7205e4-aef1-4cc4-afdf-aac93562ae67/v1-094abcfa5c3eff1cb995/card.webp)
Question paper
Mechanical Technology Grade 12 November 2024 NSC QP (Afr)
%20Eng--10859467-be3e-41fb-aee0-b797c385437d/v1-986e8982bfb6b966a34d/card.webp)
Question paper
Mechanical Technology Grade 12 NSC June 2024 QP (Eng)

Memorandum
Mechanical Technology Grade 12 Eastern Cape Mock 2023 Memo

Memorandum
Mechanical Technology Grade 12 Eastern Cape Mock 2023 Memo
%20GR12%20MEMO%20SEPT2023_English_hlayiso.com_--dfc975c1-e179-4741-8d4f-e3b20c744c7e/v1-c61c66086bf36fcf31e0/card.webp)
Memorandum
Mechanical Technology Grade 12 Eastern Cape Mock 2023 Memo
More from Grade 12 Mechanical Technology

Annual teaching plan
Gr 12 Weld Met ATP 2023 24

Memorandum
Mechanical Technology Grade 12 Eastern Cape Mock 2023 Memo

Question paper
Mechanical Technology Grade 12 Eastern Cape Mock 2023 QP
%20Afr_hlayiso.com_--7d638feb-7218-4b3c-9f4c-ce95803d6e4f/v1-e8a08d94a30d7d50ccd0/card.webp)
Question paper
Mechanical Technology Grade 12 NSC June 2023 QP (Afr)
%20Eng_hlayiso.com_--1523a16f-2012-4f13-a922-86cbb5900666/v1-5068227f3cbbba17b78f/card.webp)
Question paper
Mechanical Technology Grade 12 NSC June 2023 QP (Eng)
%20Afr_hlayiso.com_--8d31d25d-e192-4aa9-b448-efab233391a1/v1-28cf2259fca9bcde2f63/card.webp)
Question paper
